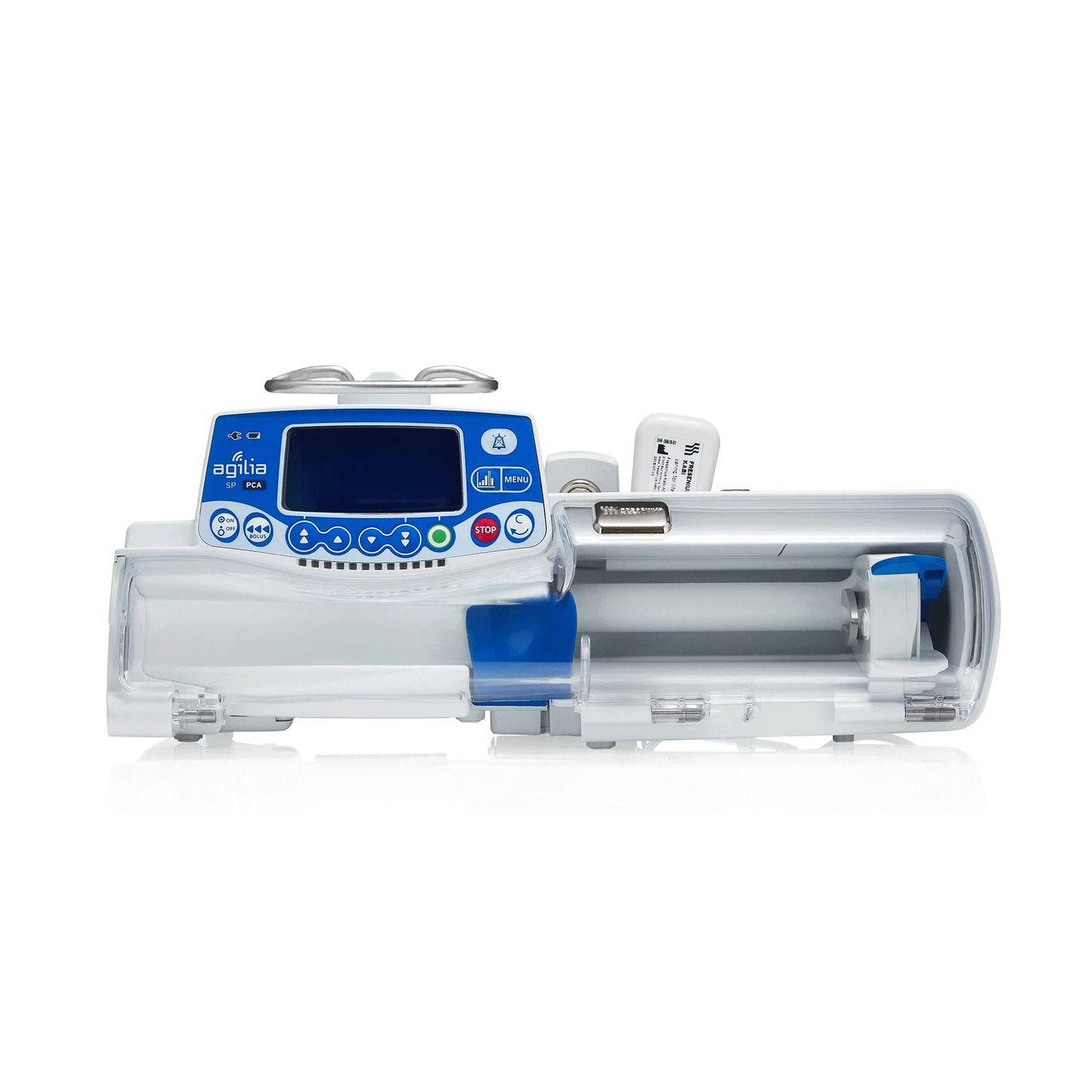

Agilia® SP PCA WiFi

Flow rate range
0.1 - 1200 mL/h, depending on the syringe capacity (0.1 mL/h increment).
Flow rate can be limited according to drug name (soft and hard limits) with Agilia Vigilant MasterMed.

Flow rate accuracy
± 1% on mechanism: ± 2 % on syringes

Syringes capacities
5, 10, 20, 30, 50/60, CC

Infusion Modes
Dose rate and mL/h mode

PCA infusion mode

• PCA Bolus Mode
• Continuous Rate Mode
• PCA Bolus + Continuous Mode
• PCA Bolus + Variable Rates Mode

Lock Out Time
1-120 Minutes

Data log event
1500 data log events

Pressure modes
2 modes available: variable or 3 pre-set levels - Range from 50 to 900 mmHg. (25 mmHg increment from 50 to 250 mmHg / 50 mmHg increment from 250 to 900 mmHg). Can be enabled/ disabled and adjusted.

Basic Profile:
Configuration only: Custom pump configuration with pharmacokinetic models.

19 Custom Profiles: Configurable with Agilia Vigilant MasterMed:

• Drug labelling: Display of the drug name.
• Drug libraries: Drug library to be created with Agilia Vigilant MasterMed.

WIRELESS LAN Technology: IEEE 802.11 a/b/g/n

Frequency Band: 2.400 -2.500 GHz (2.4 GHz is ISM band) / 4.900 - 5.850 GHz (High Band)
Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS
Wireless Security: WPA/WPA2-Entreprise, WPA/WPA2-PSK
Network Protocols: TCP, IPv4, DHCP, HTTP.
R&TTE, FCC and IC compliant.


Technical service is an essential component of the Fresenius Kabi MedTech division. At our head office in Runcorn, we have a purpose built, modern and dedicated repair centre which is able to support the growing demand for our devices.

Fresenius Kabi also have a successful and effective apprentice program able to provide the skilled resources required to support all of our business and customer needs. As a business, we want to invest in local people and provide an opportunity to train and provide the key skills required to support our customer needs.

We have a skilled and professional team of Field Service Engineers, working collaboratively with our sales and clinical teams to provide managed solutions to our customers.

Manual pusher
Protection for the ongoing infusion thanks to “Push-Guard” and the protective cover

Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels)

Swinglock clamp
Versatile clamp that allows for rail or pole mounting (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm)
Stackable – the user can attach three pumps together for transport or before mounting to a pole

Pump Dimensions
Without protective cover: (H/W/D) /Weight 155 x 360 x 195 mm / Approximately 2.5 kg
With protective cover: (H/W/D) /Weight 155 x 360 x 210 mm / Approximately 2.7 kg

Patient Handset Dimensions
Without cable: (H/W/D) /Weight 20 x 35 x 115 mm / Approximately 65g
With cable: (H/W/D) /Weight 20 x 35 x 1860 mm / Approximately 65g

Battery
Characteristics: 7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display

Battery Life (when fully charged):
- Agilia SP PCA WiFi (WiFi disabled / not used) >11 h at 5 mL/h
- Agilia SP PCA WiFi (WiFi enabled) > 6 h at 5 mL/h

Battery recharge:
- Pump OFF: < 6 h
- Pump ON: < 20 h
