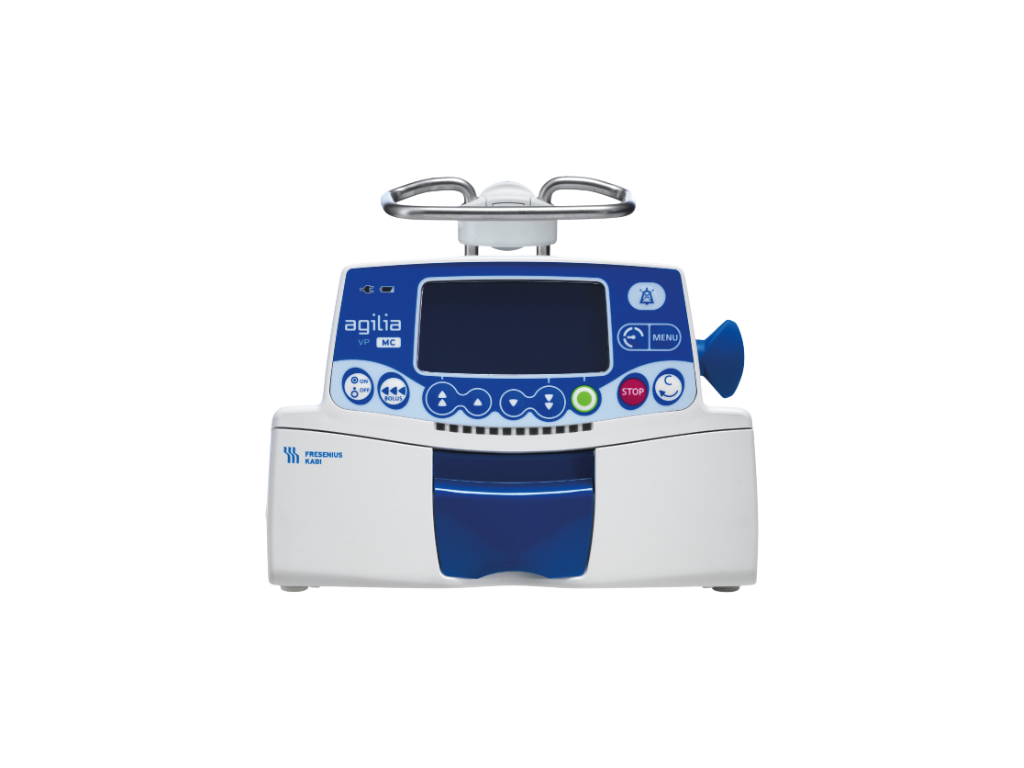

Agilia® VP MC WiFi
- Filename
- IFT264 Agilia VPMC Connect Data Sheet.pdf
- Size
- 260 KB
- Format
Details
- Clinical service
- Features
- Software
- Technical service
- Technical specification
Flow Rate Range
Dose Rate and ml/h mode
KVO
Automatic Keep Vein Open rate of 1 mL/h (adjustable from 1 to 20 mL/h) when volume limit is reached
Pause
Programmable from 1 minute to 24 hours, increments 1 minute
Data Log Event
Up to 1500 data log events in real time
Pressure Modes
Warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
- 0.1 - 1500 mL/h
- 0.01 increments is activated when the default patient weight is set under 20 kg
- Flow rate can be limited according to drug name (soft and hard limits) with Agilia Vigilant MasterMed,
- Flow Rate Accuracy ± 5%
Dose Rate and ml/h mode
KVO
Automatic Keep Vein Open rate of 1 mL/h (adjustable from 1 to 20 mL/h) when volume limit is reached
Pause
Programmable from 1 minute to 24 hours, increments 1 minute
Data Log Event
Up to 1500 data log events in real time
Pressure Modes
- 2 modes available: variable or 3 pre-set levels - Range from 50 to 750 mmHg
- (25 mmHg increment from 50 to 250 mmHg / 50 mmHg increment from 250 to 750 mmHg)
Warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
Basic Profile:
Configuration only: Custom pump configuration without Drug Name
19 Custom Profiles: Configurable with Agilia Vigilant MasterMed:
WIRELESS LAN Technology: IEEE 802.11 a/b/g/n
Frequency Band: 2.400 -2.500 GHz (2.4 GHz is ISM band) / 4.900 - 5.850 GHz (High Band)
Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS
Wireless Security: WPA/WPA2-Entreprise, WPA/WPA2-PSK
Network Protocols: TCP, IPv4, DHCP, HTTP.
R&TTE, FCC and IC compliant
Configuration only: Custom pump configuration without Drug Name
19 Custom Profiles: Configurable with Agilia Vigilant MasterMed:
- Drug labelling: Display of the drug name
- Drug libraries: Drug library to be created with Agilia Vigilant MasterMed
WIRELESS LAN Technology: IEEE 802.11 a/b/g/n
Frequency Band: 2.400 -2.500 GHz (2.4 GHz is ISM band) / 4.900 - 5.850 GHz (High Band)
Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS
Wireless Security: WPA/WPA2-Entreprise, WPA/WPA2-PSK
Network Protocols: TCP, IPv4, DHCP, HTTP.
R&TTE, FCC and IC compliant
Technical service is an essential component of the Fresenius Kabi MedTech division. At our head office in Runcorn, we have a purpose built, modern and dedicated repair centre which is able to support the growing demand for our devices.
Fresenius Kabi also have a successful and effective apprentice program able to provide the skilled resources required to support all of our business and customer needs. As a business, we want to invest in local people and provide an opportunity to train and provide the key skills required to support our customer needs.
We have a skilled and professional team of Field Service Engineers, working collaboratively with our sales and clinical teams to provide managed solutions to our customers.
Pumping Mechanism
2nd generation linear peristaltic pumping system with software adjustments and compensations
Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels)
Swinglock Clamp
Versatile clamp that allows for rail or pole mounting (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm)
Stackable – the user can attach three pumps together for transport or before mounting to a pole
Dimensions
(H/W/D) /Weight 135 x 190 x 170 mm / Approximately 2 kg
Battery Characteristics
7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display
Battery Life (when fully charged):
Agilia VP MC WiFi (WiFi disabled / not used) > 9 h at 25 mL/h, > 5 h 30 at 1500 mL/h
Agilia VP MC WiFi (WiFi enabled) > 6 h at 25 mL/h, > 4 h at 1500 mL/h
Battery recharge:
Pump OFF: < 6 h
Pump ON: < 20 h
2nd generation linear peristaltic pumping system with software adjustments and compensations
Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels)
Swinglock Clamp
Versatile clamp that allows for rail or pole mounting (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm)
Stackable – the user can attach three pumps together for transport or before mounting to a pole
Dimensions
(H/W/D) /Weight 135 x 190 x 170 mm / Approximately 2 kg
Battery Characteristics
7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display
Battery Life (when fully charged):
Agilia VP MC WiFi (WiFi disabled / not used) > 9 h at 25 mL/h, > 5 h 30 at 1500 mL/h
Agilia VP MC WiFi (WiFi enabled) > 6 h at 25 mL/h, > 4 h at 1500 mL/h
Battery recharge:
Pump OFF: < 6 h
Pump ON: < 20 h
GB-VP-2400002 September 2024
