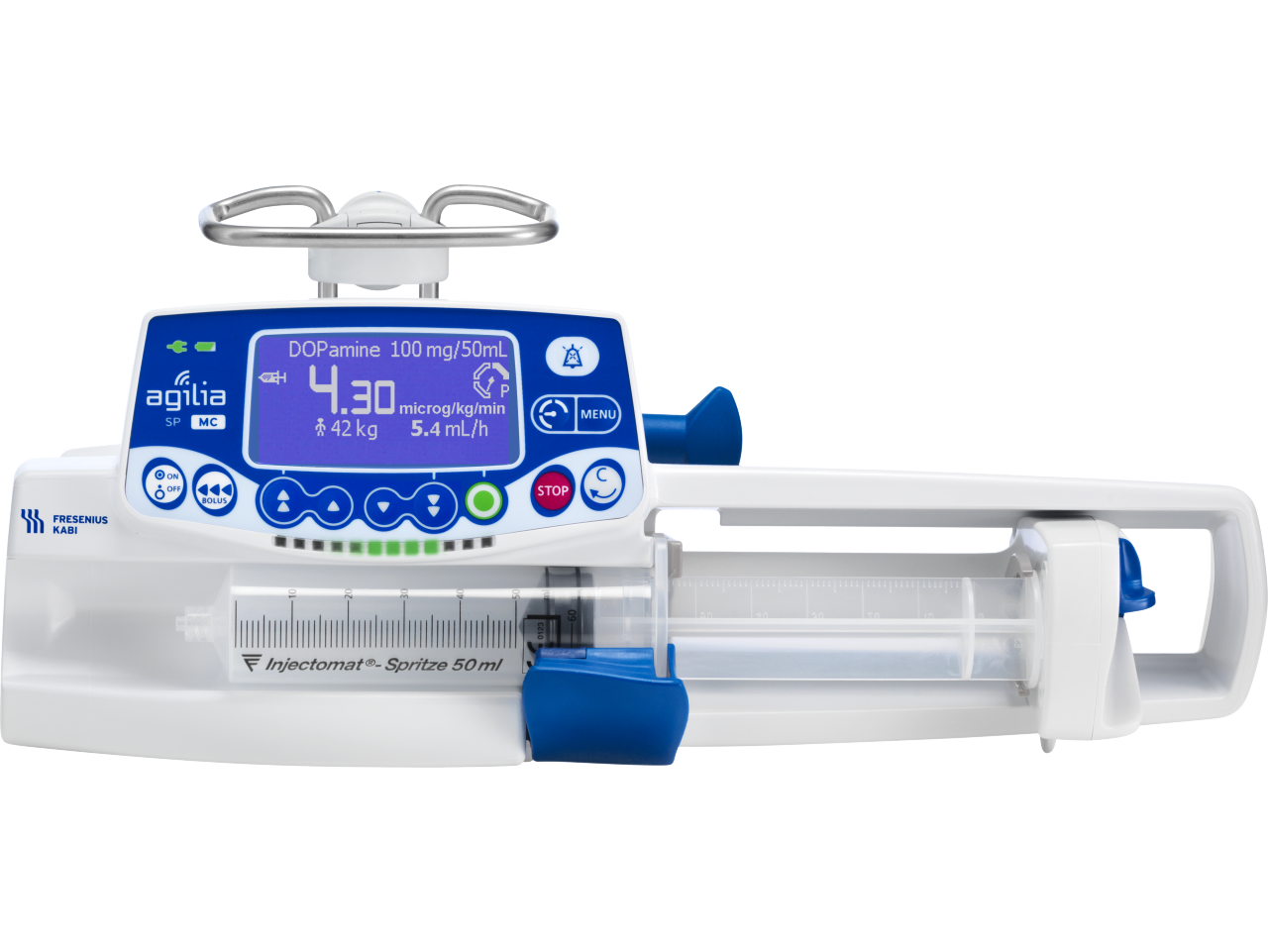

Agilia® SP MC

Syringe pump for intravascular and epidural infusion

Agilia SP MC offers a wide range of programming modes, adapted for Intravascular and Epidural infusion, that suit all
infusion protocols, from the simplest to the most advanced:

Flow rate and dose rate programming, loading dose, manual and programmed bolus.

The infusion can be programmed from 0.1 up to 1 200 mL/h.

The pump can be programmed in dose rate with direct translation into flow rate in mL/h.

Details

Design Features:
Robust Construction: Built to withstand demanding environments.
Safety-Centric: Prioritizes user and patient safety.
User-Friendly: Intuitive settings ensure easy operation.
Portable: Designed for easy transportation.
Simple Repairs: Requires only one screwdriver to open the pump.

Clear Configuration and Monitoring:
Versatile Modes: Choose from mL/h and Dose modes.
Intuitive Instructions: Displayed instructions are simple to follow, boosting user confidence.
Accessible Information: Accessible numerical and graphical data simplify monitoring.
Visible Syringe and Flow Indicators: The syringe is always visible, and flow indicator lights enable quick and safe monitoring.

Versatile Accessories:
Adaptable for a wide variety of environments, including MRI units and ambulances.

Powered by Vigilant Software Suite:
Vigilant Master Med: a DERS software that allows you to create, customize, and distribute drug libraries tailored to the needs of all your clinical care units.
Vigilant Sentinel: Provides infusion status to help organize and prioritize nurse actions at the bedside.
Vigilant Insight: Collects infusion data and generates reports to analyze and improve drug library utilization and infusion practices.
Vigilant Centerium: Facilitates remote distribution of drug libraries and monitoring of a fleet of devices.
Vigilant Bridge and EMR Auto-Documentation: Ensures interoperability between our pumps and the PDMS/EMR using HL7 standards and IHE profiles.

Abbreviations:
DERS: Dose Error Reduction Software
EMR: Electronic Medical Record
IHE: Integrating the Healthcare Enterprise
PDMS: Patient Date Management System

Flow rate range:

0,1 - 1 200 mL/h, depending on the syringe capacity (0,1 mL/h increment). 0,01 minimum increments instead of 0,1 mL/h is activated when the max patient weight is set to 20 kg in the Agilia Vigilant drug library. Flow rate can be limited according to the medicine name (soft and hard limits) with Agilia Vigilant Drug’Lib, IV Medication Safety System.

Flow rate accuracy:

  • ±1 % on mechanism: ± 2 % on syringes.

Syringes capacities:

  • 5, 10, 20, 30/35, 50/60 cc.

Type of syringe:

  • Up to 100 types.
Infusion Modes:
  • mL/h mode.
  • Dose rate mode: ng/h, ng/kg/min, ng/kg/h, microg/min, microg/h, microg/kg/min, microg/kg/h, mg/min, mg/h, mg/24h, mg/kg/min, mg/kg/h, mg/kg/24h,mg/m2/h, mg/m2/24h, g/h, g/kg/min, g/kg/h, g/kg/24h, mmol/h, mmol/kg/h, mmol/kg/24h,  mU/min, mU/kg/min, mU/kg/h, U/min, U/h, U/kg/min, U/kg/h, kcal/h, kcal/24h, kcal/kg/h, mEq/min, mEq/h, mEq/kg/min, mEq/kg/h.
  • Dilution setting: -- units/mL or -- units/-- mL.
  • With or without loading dose.
  • Volume or dose/time: 0,1 - 99,9 mL/00h01 - 96h00.
  • Volume limit: 0,1 - 999 mL.
Volume/Dose infused:
  • Volume: 0,1 - 999,9 mL/Dose: 0,1 – 9 999 dose units.
Priming:
  • 3 modes: mandatory, not mandatory, or advised / Rate: 1 200 mL/h.
Bolus:
  • Direct bolus: Rate: 50 - 1 200 mL/h (50 mL/h increment)
  • Programmed bolus:
    - In Volume: 0,1 - 99,9 mL/ 1 sec - 24 h
    - In Dose: 0,01 - 9 999 dose units / 1 sec - 24 h
Loading dose:
  • Dose or volume / time: 0,1 - 99,9 units / 00 min 01 - 59 min 59 rate auto-calculation.
End infusion - Volume over Time (V/T) & Volume Limit (VL):
  • KVO: adjustable from 0,1 to 5 mL/h, continuous infusion or stop.
Fast start:
  • Not mandatory
  • If user does not prime with bolus button, prime set by default resulting in fast start
  • Ensures programmed flow rate to be reached faster.
Pause:
  • Programmable from 1 minute to 24 hours, increments from minute to minute.
Data log event:
  • 1 500 data log events in real time.
Graphical history:
  • Volume / dose infused, pressure, flow rate.
Night mode:
  • The night mode decreases the brightness of the screen and the green lights. The key beep can eventually be turned off. The night mode can be programmed manually or automatically in a variable time range.
Profiles:
Basic profile:
  • Infusion without any display of the medicine names.
  • 19 Custom profiles configurable with Agilia Vigilant Drug’Lib: Drug library to be created with Agilia Vigilant Drug’Lib.
  • Configuration only: Custom pump configuration without medicine name.

Agilia SP MC: Designed for Evolving Clinical Environments

The Agilia SP MC is engineered to adapt to the changing needs of clinical settings, offering intuitive use, enhanced safety, and increased comfort.

Robust Construction:
Shock-Absorbing Housing: Constructed with a minimal number of parts from a durable and elastic material called ABS, the housing acts as a shock energy absorber.
Reinforced Frame: An extremely robust and rigid frame made of glass fiber reinforced polymer is situated beneath the housing, securely anchoring all critical components.
Push Guard: Ensures protection of the arm against shocks.

Ensuring Continuous Infusion:
Mobility: Equipped with an integrated handle, the Agilia SP MC is extremely mobile and easy to carry. Up to three devices can be stacked for efficient transport and use.

Enhanced Safety Features:
Pump Priming: The ability to require or advise pump priming decreases mechanical slack at the start, enhancing infusion performances.

User-Friendly Design:
Easy Handling: All movable parts are identified in blue for easy handling and operation.

The Agilia SP MC is your reliable solution for a safer, more efficient, and comfortable clinical environment.

Fresenius Kabi MedTech
E-mail: Tech.FKSA@fresenius-kabi.com
Phone: +27 (0) 11 545 0000

MedTech Quotations
E-mail: Quotes.MedTech@fresenius-kabi.com
Phone: +27 (0) 11 545 0176

Technical specifications
Manual pusher
  • Protection for the ongoing infusion thanks to "Push-Guard”.
Display
  • Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels).
Swinglock clamp
  • Versatile clamp that allows the fixation on a rail or on a pole (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm).
Stackability
  • Up to 3 devices self-stackable on a pole.
Dimensions (h/w/d) / weight
  • 135 X 345 X 170 mm / ~ 2,1 kg.
Battery
  • Characteristics: 7,2 V 2,2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display.
  • Battery Life (when fully charged):
  • - Agilia SP MC and Agilia SP MC WiFi (WiFi disabled / not used):
  • > 13 h at 5 mL/h.
  • - Agilia SP MC WiFi (WiFi enabled):
  • > 9 h at 5 mL/h.
Battery recharge:
  • - Pump OFF: < 6 h.
  • - Pump ON: < 20 h.
Waterproofness
  • Ingress Protection (IP22).
Power supply
  • 100 V - 240 V ~ / 50/60 Hz with functional earth.
