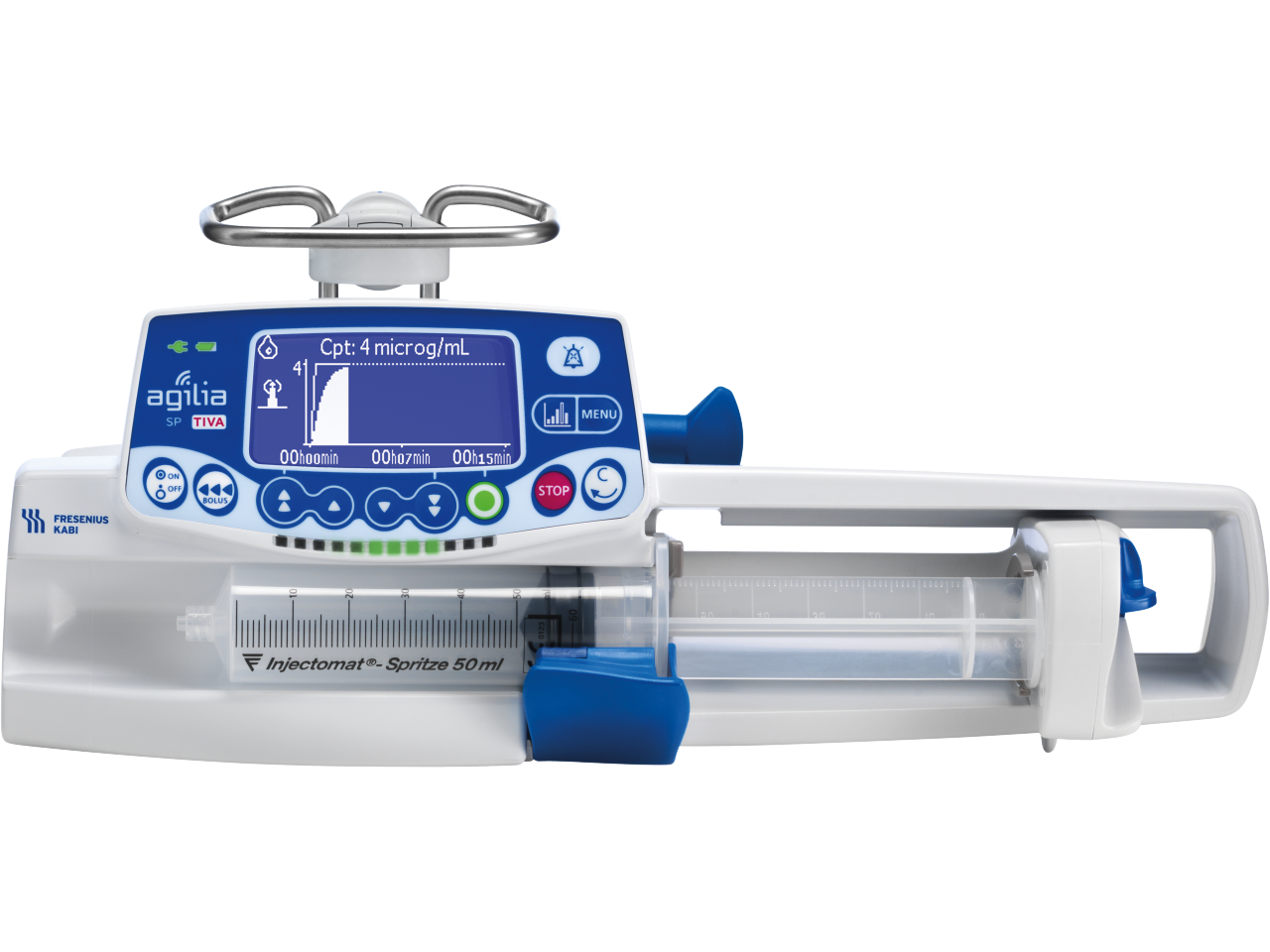

Agilia® SP TIVA

Agilia SP TIVA: Advanced Anaesthesia Management



The Agilia SP TIVA (Total Intravenous Anaesthesia) pump is an advanced medical device designed to provide precise control over the delivery of anaesthesia medication intravenously, ensuring patient safety and comfort during surgical procedures.

Precise Anaesthesia Infusions:
TCI (Target-Controlled Infusion) Programming Mode: The pump's software can determine the infusion rate pattern required to achieve and maintain a target drug concentration in a body compartment or tissue. This helps the anaesthetist infuse the minimum dose/volume needed to reach a target concentration based on patient information and the desired target.

Versatile and Flexible:
TIVA Programming Mode:Offers flexibility in dose rate or mL/h settings, covering your entire library of anaesthesia protocols.
Integrated Safety: Assisted by Vigilant Master Med, Agilia SP TIVA enhances safety in TIVA (Total Intravenous Anaesthesia).

The Agilia SP TIVA pump is your advanced solution for precise, safe, and comfortable anaesthesia management.

Details

Design Features:
Robust Construction: Built to withstand demanding environments.
Safety-Centric: Prioritizes user and patient safety.
User-Friendly: Intuitive settings ensure easy operation.
Portable: Designed for easy transportation.
Simple Repairs: Requires only one screwdriver to open the pump.

Clear Configuration and Monitoring:
Versatile Modes: Choose from mL/h, Dose, and TCI modes.
Intuitive Instructions: Displayed instructions are simple to follow, boosting user confidence.
Accessible Information: Easily accessible numerical and graphical data simplify monitoring.
Visible Syringe and Flow Indicators: The syringe is always visible, and flow indicator lights enable quick and safe monitoring.

Comprehensive Menu for TCI Information:
Direct Access to TCI Data: The graph key provides immediate access to TCI information.
Detailed Infusion History: Full menu includes TCI infusion history in both dose and flow rate.
Key Parameters and History: View key infusion parameters, target and concentration history, and wake-up time configuration.

Powered by Vigilant Software Suite:
Vigilant Master Med: a DERS software that allows you to create, customize, and distribute drug libraries tailored to the needs of all clinical care units.
Vigilant Centerium: Facilitates remote distribution of drug libraries and monitoring of a fleet of devices.

Abbreviations:
DERS = Dose Error Reduction Software
TCI = Target-Controlled Infusion

Agilia SP TIVA:
Comprehensive Pharmacokinetic TCI (Target-Controlled Infusion) Models
The Agilia SP TIVA pump offers advanced pharmacokinetic TCI models, covering the widest range of patient populations, including children.

Agilia SP TIVA with the following pharmacokinetic models:
Marsh & Schnider with Plasma and TCI Effect target for Propofol administration in adults
Kataria & Paedfusor with Plasma target for Propofol administration in paediatrics
Minto, Gepts & Scott for with Plasma and TCI Effect target for Remifentanil, Sufentanil and Alfentanil administration in adults

The Agilia SP TIVA pump is designed to meet diverse anaesthesia needs with precise pharmacokinetic models, ensuring safe and effective medicine delivery for both adults and children.

Fresenius Kabi MedTech
E-mail: Tech.FKSA@fresenius-kabi.com
Phone: +27 (0) 11 545 0000

MedTech Quotations
E-mail: Quotes.MedTech@fresenius-kabi.com
Phone: +27 (0) 11 545 0176


Flow rate range
0,1 - 1 200 mL/h depending on the syringe capacity, which can be restricted for each medication (soft and hard limits) with Vigilant Master Med, The Dose Error Reduction Software

Flow rate accuracy
+/- 3 %

Syringes capacities
5/6, 10/12, 20, 30/35, 50/60 cc

Type of syringe
Up to 100 different types

TCI Mode
Pharmacokinetic Models:
• Marsh & Schnider with Plasma and TCI Effect target for Propofol administration in adults
• Kataria & Paedfusor with Plasma target for Propofol administration in pediatrics
• Minto, Gepts & Scott for with Plasma and TCI Effect target for Remifentanil, Sufentanil and Alfentanil administration in adults

Volume/Dose infused
Volume: 0,1 - 999 mL/Dose: 0,01 - 9 999 dose units

Priming
3 modes:
  • mandatory
  • not mandatory
  • advised
Rate: 250 – 1 200 mL/h depending on the syringe capacity
