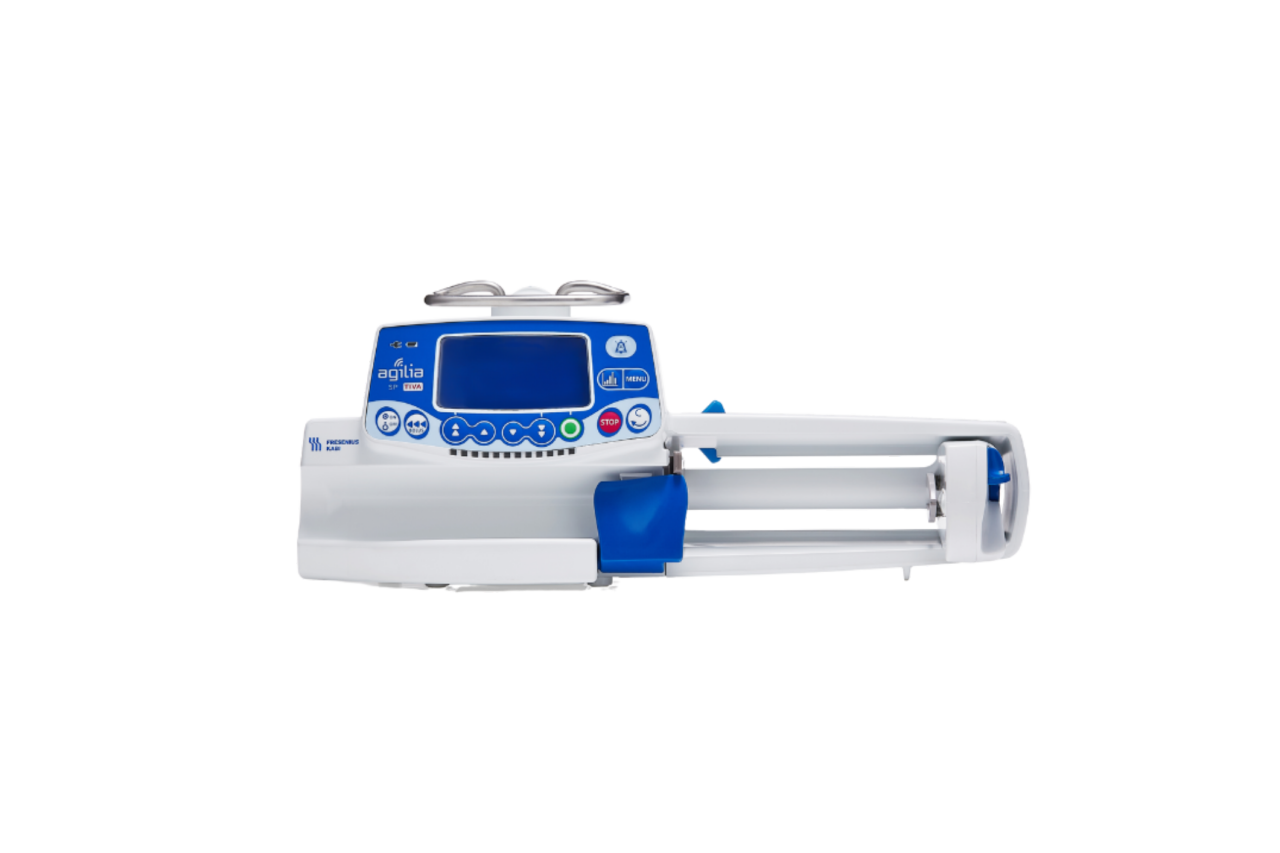

Agilia® SP TIVA WiFi
- Filename
- GB-TIVA-2400001 Agilia SP TIVA Data Sheet.pdf
- Size
- 1 MB
- Format
Details
- Clinical service
- Features
- Software
- Technical service
- Technical specification
Flow rate range
0.1 - 1200 mL/h, depending on the syringe capacity (0.1 mL/h increment).
0.01 minimum increments is activated when the max patient weight is set to 20 kg in the drug library
Flow rate can be limited according to drug name (soft and hard limits) with Agilia Vigilant MasterMed
Flow rate accuracy
± 1% on mechanism: ± 2 % on syringes
Syringes capacities
5, 10, 20, 30, 50/60, CC
Infusion Modes
Dose rate and mL/h mode
TCI infusion mode
Effect or Plasma mode
TCI Mode
Pharmacokinetic Models:
1500 data log events
Pressure modes
2 modes available: variable or 3 pre-set levels - Range from 50 to 900 mmHg. (25 mmHg increment from 50 to 250 mmHg / 50 mmHg increment from 250 to 900 mmHg). Can be enabled/ disabled and adjusted.
0.1 - 1200 mL/h, depending on the syringe capacity (0.1 mL/h increment).
0.01 minimum increments is activated when the max patient weight is set to 20 kg in the drug library
Flow rate can be limited according to drug name (soft and hard limits) with Agilia Vigilant MasterMed
Flow rate accuracy
± 1% on mechanism: ± 2 % on syringes
Syringes capacities
5, 10, 20, 30, 50/60, CC
Infusion Modes
Dose rate and mL/h mode
TCI infusion mode
Effect or Plasma mode
TCI Mode
Pharmacokinetic Models:
- Marsh & Schnider for Propofol administration on adults.
- Kataria & Paedfusor for Propofol administration on paediatrics.
- Minto, Gepts & Scott for Remifentanil, Sufentanil and Alfentanil. administration in adults
1500 data log events
Pressure modes
2 modes available: variable or 3 pre-set levels - Range from 50 to 900 mmHg. (25 mmHg increment from 50 to 250 mmHg / 50 mmHg increment from 250 to 900 mmHg). Can be enabled/ disabled and adjusted.
Basic Profile:
Configuration only: Custom pump configuration with pharmacokinetic models
19 Custom Profiles: Configurable with Agilia Vigilant MasterMed:
WIRELESS LAN Technology: IEEE 802.11 a/b/g/n
Frequency Band: 2.400 -2.500 GHz (2.4 GHz is ISM band) / 4.900 - 5.850 GHz (High Band).
Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS.
Wireless Security: WPA/WPA2-Entreprise, WPA/WPA2-PSK.
Network Protocols: TCP, IPv4, DHCP, HTTP.
R&TTE, FCC and IC compliant.
Configuration only: Custom pump configuration with pharmacokinetic models
19 Custom Profiles: Configurable with Agilia Vigilant MasterMed:
- Drug labelling: Display of the drug name.
- Drug libraries: Drug library to be created with Agilia Vigilant MasterMed
WIRELESS LAN Technology: IEEE 802.11 a/b/g/n
Frequency Band: 2.400 -2.500 GHz (2.4 GHz is ISM band) / 4.900 - 5.850 GHz (High Band).
Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM 802.11b with CCK and DSSS.
Wireless Security: WPA/WPA2-Entreprise, WPA/WPA2-PSK.
Network Protocols: TCP, IPv4, DHCP, HTTP.
R&TTE, FCC and IC compliant.
Technical service is an essential component of the Fresenius Kabi MedTech division. At our head office in Runcorn, we have a purpose built, modern and dedicated repair centre which is able to support the growing demand for our devices.
Fresenius Kabi also have a successful and effective apprentice program able to provide the skilled resources required to support all of our business and customer needs. As a business, we want to invest in local people and provide an opportunity to train and provide the key skills required to support our customer needs.
We have a skilled and professional team of Field Service Engineers, working collaboratively with our sales and clinical teams to provide managed solutions to our customers.
Manual pusher
Protection for the ongoing infusion thanks to “Push-Guard”
Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels)
Swinglock clamp
Versatile clamp that allows for rail or pole mounting (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm).
Stackable – the user can attach three pumps together for transport or before mounting to a pole.
Dimensions
(H/W/D) /Weight 135 x 190 x 170 mm / Approximately 2 kg
Battery
Characteristics: 7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display.
Battery Life (when fully charged):
- Agilia SP TIVA WiFi (WiFi disabled / not used) >13 h at 5 mL/h
- Agilia SP TIVA WiFi (WiFi enabled) > 9 h at 5 mL/h
Battery recharge:
- Pump OFF: < 6 h
- Pump ON: < 20 h
Protection for the ongoing infusion thanks to “Push-Guard”
Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels)
Swinglock clamp
Versatile clamp that allows for rail or pole mounting (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm).
Stackable – the user can attach three pumps together for transport or before mounting to a pole.
Dimensions
(H/W/D) /Weight 135 x 190 x 170 mm / Approximately 2 kg
Battery
Characteristics: 7.2 V 2.2 Ah - Li-ion Smart battery, remaining battery life and battery charge level available on the display.
Battery Life (when fully charged):
- Agilia SP TIVA WiFi (WiFi disabled / not used) >13 h at 5 mL/h
- Agilia SP TIVA WiFi (WiFi enabled) > 9 h at 5 mL/h
Battery recharge:
- Pump OFF: < 6 h
- Pump ON: < 20 h
GB-TIVA-2400006 September 2024
